YL50 Multi-function Video Transmission Module | Three-in-one Data-Video-Control Link, 50KM Long-Range Transmission, Tri-Band for Enhanced Stability!
In the fields of drone aerial photography, security surveillance, vehicle and vessel control, industrial inspection, and remote operation of intelligent devices, stable and low-latency video and data transmission serves as the core guarantee for smooth mission completion. Today, we are pleased to officially launch the YL50 Multi-function Video Transmission Module—enabling you to enjoy a more professional and flexible interconnected experience!
Core Highlight: Three-in-one Data-Video-Control Link , Simplified System
YL50 is equipped with a highly integrated three-in-one Data-Video-Control link, which integrates remote control commands, multi-source data and high-definition video transmission into a single link. There is no need to install additional communication modules, which significantly enhancing system reliability and integration neatness.
Performance Advantages: 50KM Ultra-Long Range and Tri-Band Anti-Interference Technology
50 KM Extreme Transmission Range: Built on Skydroid's advanced link technology, YL50 supports ultra-long-distance data and video transmission up to 50KM under ideal conditions when used with R30 receiver.
Tri-Band Dynamic Frequency Adjustment: The device features three frequency bands, allowing flexible configuration—you can select a single band based on the on-site environment or activate all three bands simultaneously. Equipped with automatic frequency hopping technology, it effectively resists complex electromagnetic interference, ensuring uninterrupted link connectivity. (Please consult our technical team support for more details.)
Versatile Application Scenarios: Supports PPM 8 / SBUS 16 channels. Can used with the R30 receiver, it is perfectly compatible with helicopters, fixed-wing aircraft, and multi-rotor drones, and can even be widely applied to unmanned ground vehicles (UGVs) and unmanned surface vessels (USVs).
Compact and Portable: Robust Configuration in a Lightweight Design
The YL50 device is remarkably compact and portable. The box weighs only 135.7 g, and even with the antenna installed, the total weight is merely 204.5 g.
Rich Professional Interface Design:
Power Input: Equipped with an XT60 interface, supporting a voltage input range of 7.2V to 80V.
Data Interfaces: Features a Type-C upgrade/debugging port, an RJ45 LAN port, and an SBUS/PPM input port.
Quick-Dismount Expansion: A built-in 1/4" internal threaded hole is thoughtfully designed at the bottom, enabling fast mounting on tripods and other external devices.
Flexible Networking and Simplified Frequency Banding

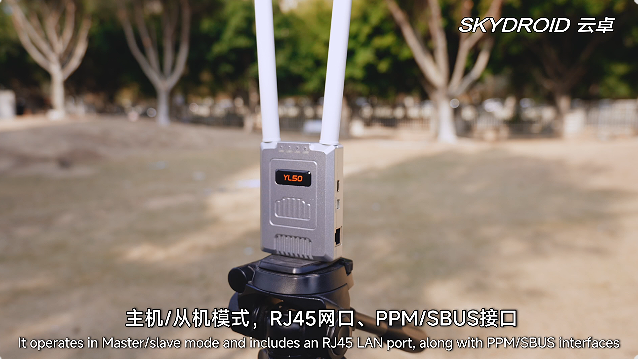

Master/Slave Switching: A dedicated button on the side of the unit allows for one-key toggling between Master or Slave mode with a long press.
Multi-Device Interconnection: It can function as a Master connecting to an R30 receiver, or in Slave mode, it can connect to another YL50 Video Transmission Module.
Quick Frequency Band Switching: Use the "Switch Frequency/ Frequency Banding" button on the side of the device for rapid band switching.
Powerful Ground Station Software Compatibility
For actual field operations, simply connect the YL50 to a computer via Ethernet cable and connect the remote controller with a PPM cable to start working.(The remote controller only needs to support PPM or SBUS output.)
After configuring the static IPv4 address on the computer side, you can directly receive video streams using the VLC media player.(Refer to the user manual for details.)
Seamless Compatibility with Mainstream Ground Stations: Open Mission Planner, select UDPCI and enter the corresponding address to retrieve parameters; or in the QGC round Control ground station's Application Settings, set the RTSP URL for video streaming and UDP for communication, enabling effortless full situational awareness.
With its highly integrated three-in-one Data-Video-Control link, 50KM long-range transmission capability, and robust tri-band anti-interference technology, the Skydroid YL50 ensures the safety and stability of every operation. If you are seeking a portable, long-range, three-in-one Data-Video-Control link data and control with strong anti-interference capabilities, the YL50 Multi-functional Video Transmission Module is undoubtedly your optimal choice. Contact us now and begin a new chapter of efficient operations!
